Open-Cell Ceilings

DeltaCell

Material	Aluminium and steel
Cell-sizes	Variable from 30 up to 200mm
Blade-heights	Variable from 20mm ,30mm and 40mm

Blade-types

DeltaCell 3: 3mm wide and 20mm height
DeltaCell 4: 4mm wide and 30mm height
DeltaCell 10: 10mm wide and 40mm height

+ More details, specifications and references

Suspension variations	Lay-in Tegular Lay-in Trackless
Suspension systems	Standard single suspension Double suspension Suspension with acoustic pads
Perimeter details	Perimeter details
Product details	DeltaCell 3 DeltaCell 4 DeltaCell 10

Colours	Any RAL- or NCS colour
Product video's	DeltaCell with direct single suspension DeltaCell with double suspension including primary U-profile DeltaCell with direct single suspension plus additional system to install acoustic pads directly above the DeltaCell ceiling. View all video's at our YouTube channel

DeltaCell References

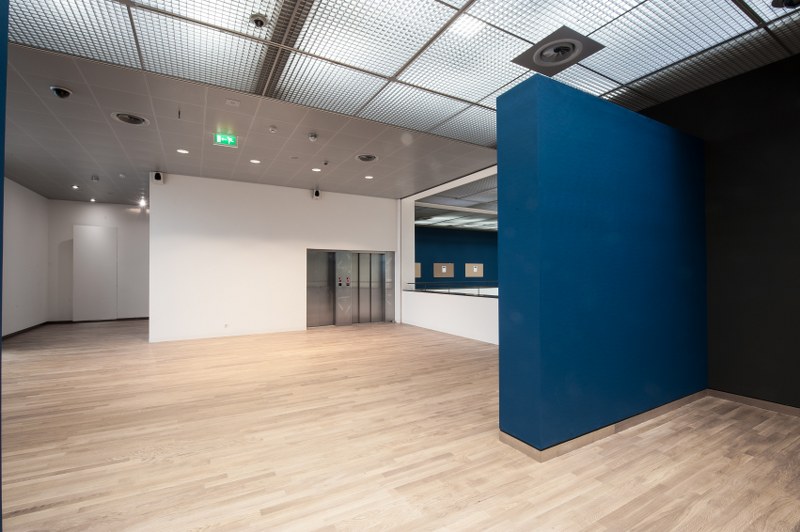

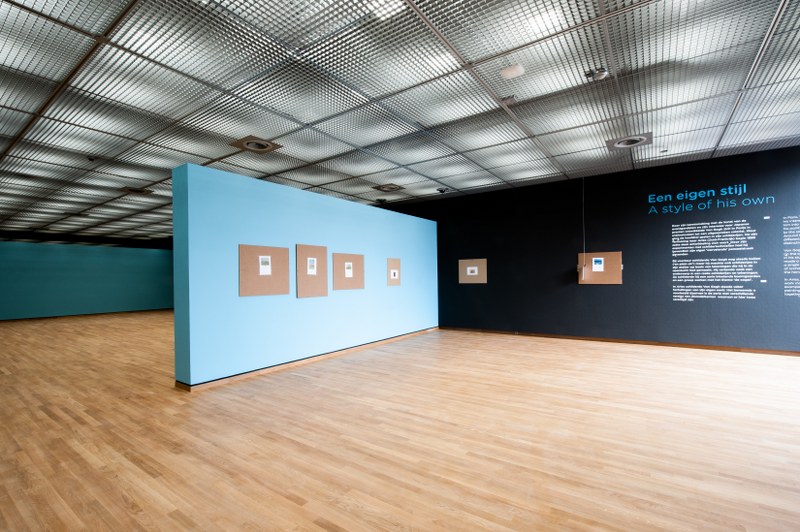

van Gogh Museum Amsterdam Design, development and supplied by Ariaans-International Installed by Verwol PDF: Van Gogh Museum lay-out drawing

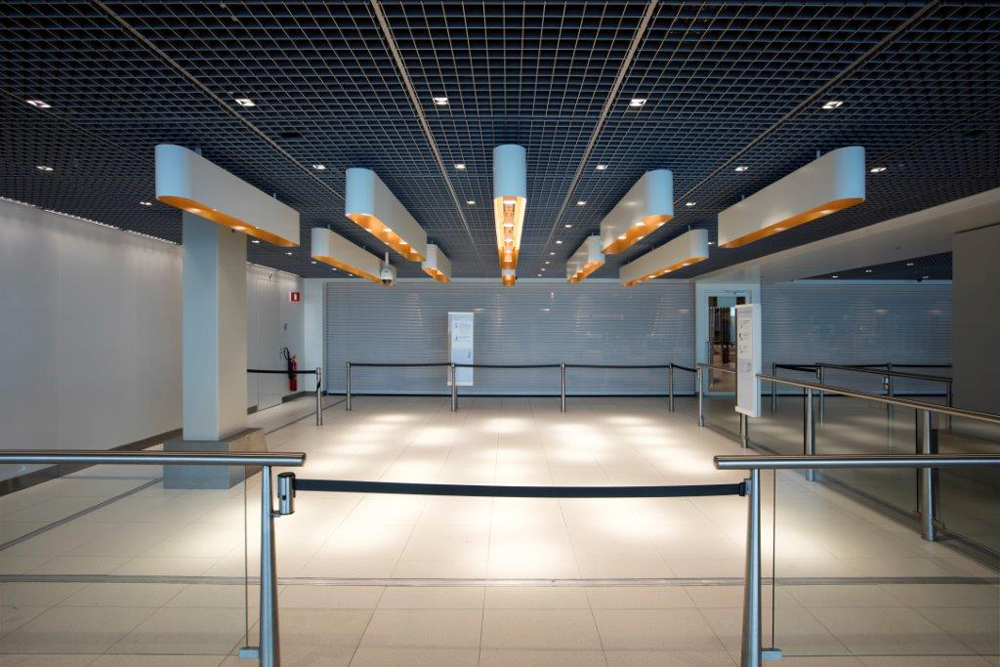

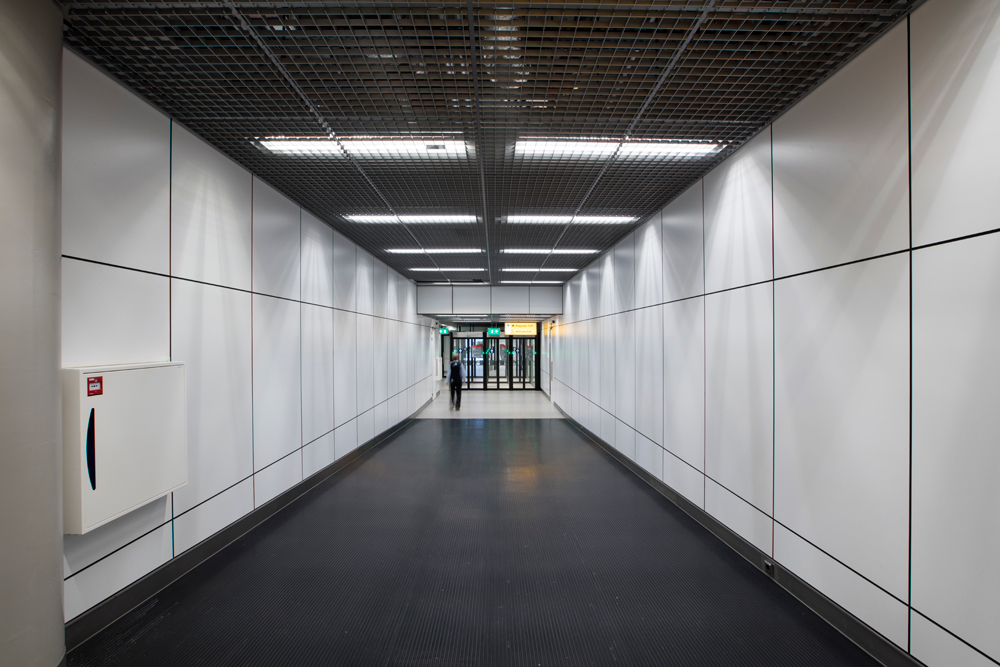

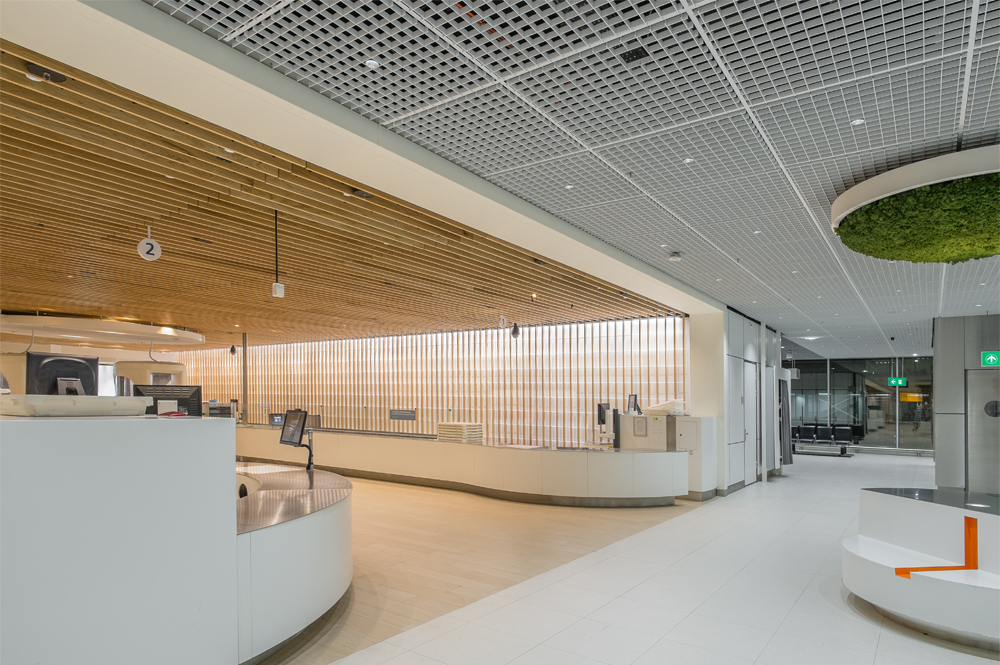

Amsterdam Schiphol Airport

Open-cell ceiling Tegular Lay-in and trackless DeltaCell 4
PDF: Detail Schiphol 1
PDF: Detail Schiphol 3
PDF: Detail Schiphol 5
PDF: Detail Schiphol 6
PDF: Detail Schiphol 7
PDF: Detail Schiphol 8

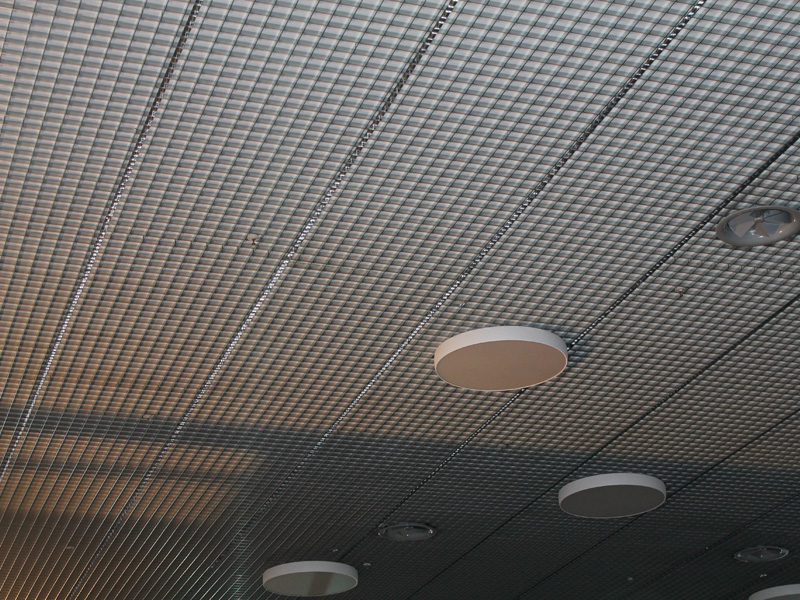

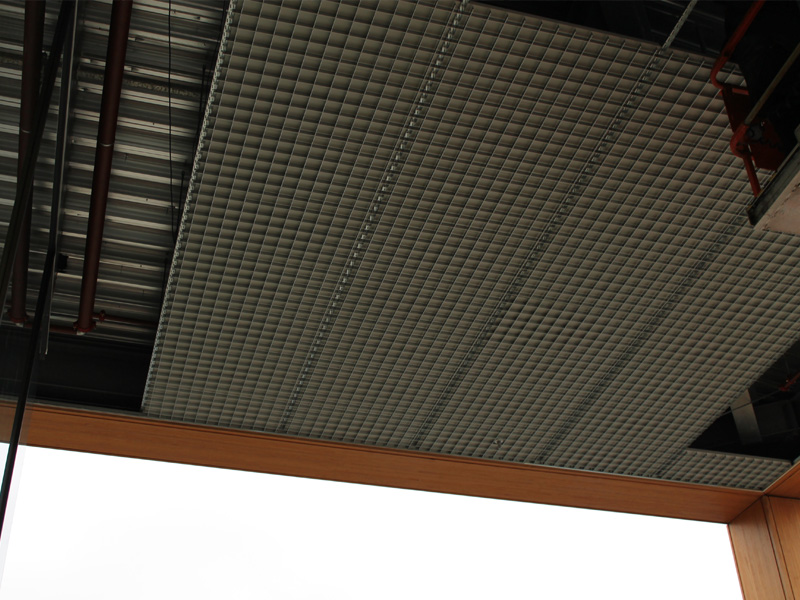

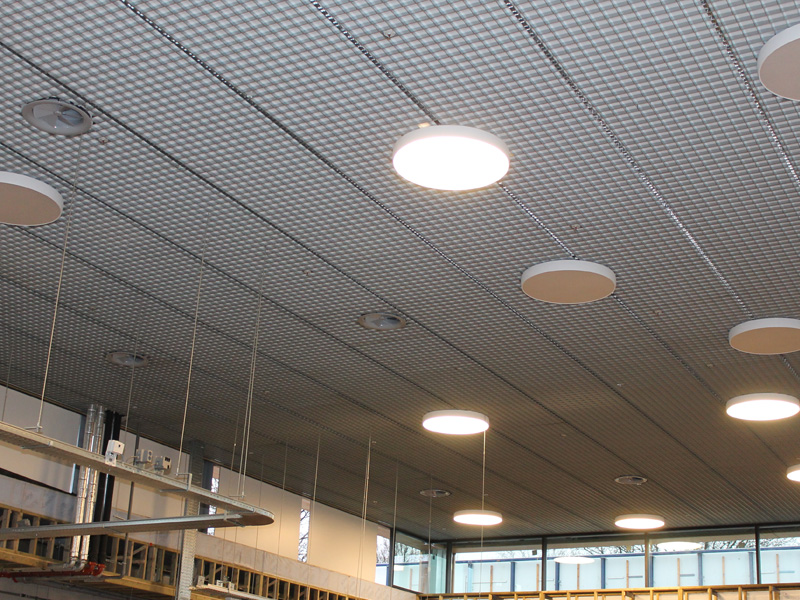

Albert Heijn XL eindhoven

Open-cell ceilingsystem (DeltaCell 4)
Produced with Sendzimir galvanized steel.
Anti-bug and anti-bird systems.
PDF: 14.031.020-e Detail exterior AH- in Eindhoven
PDF: 14.031.020-i Detail interior AH- in Eindhoven

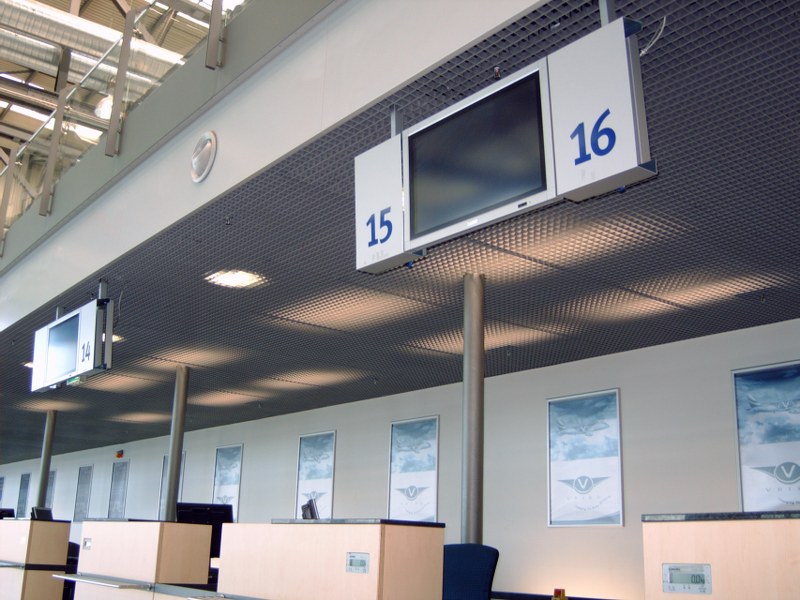

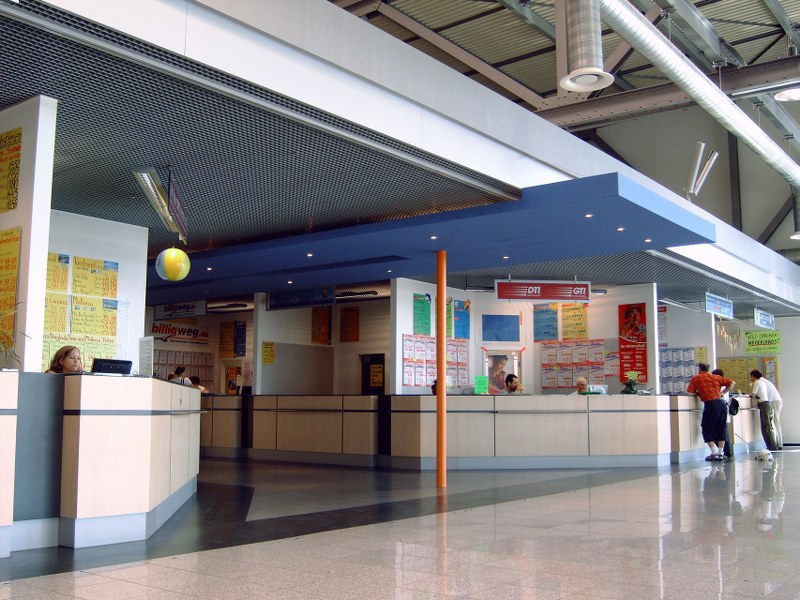

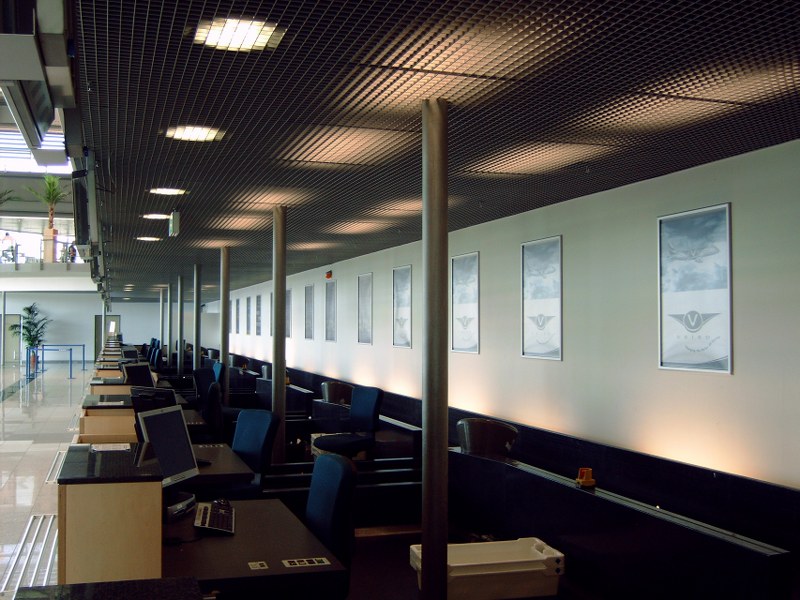

Weeze Airport Germany

Open-cell ceilingsystem (DeltaCell 4 Trackless)

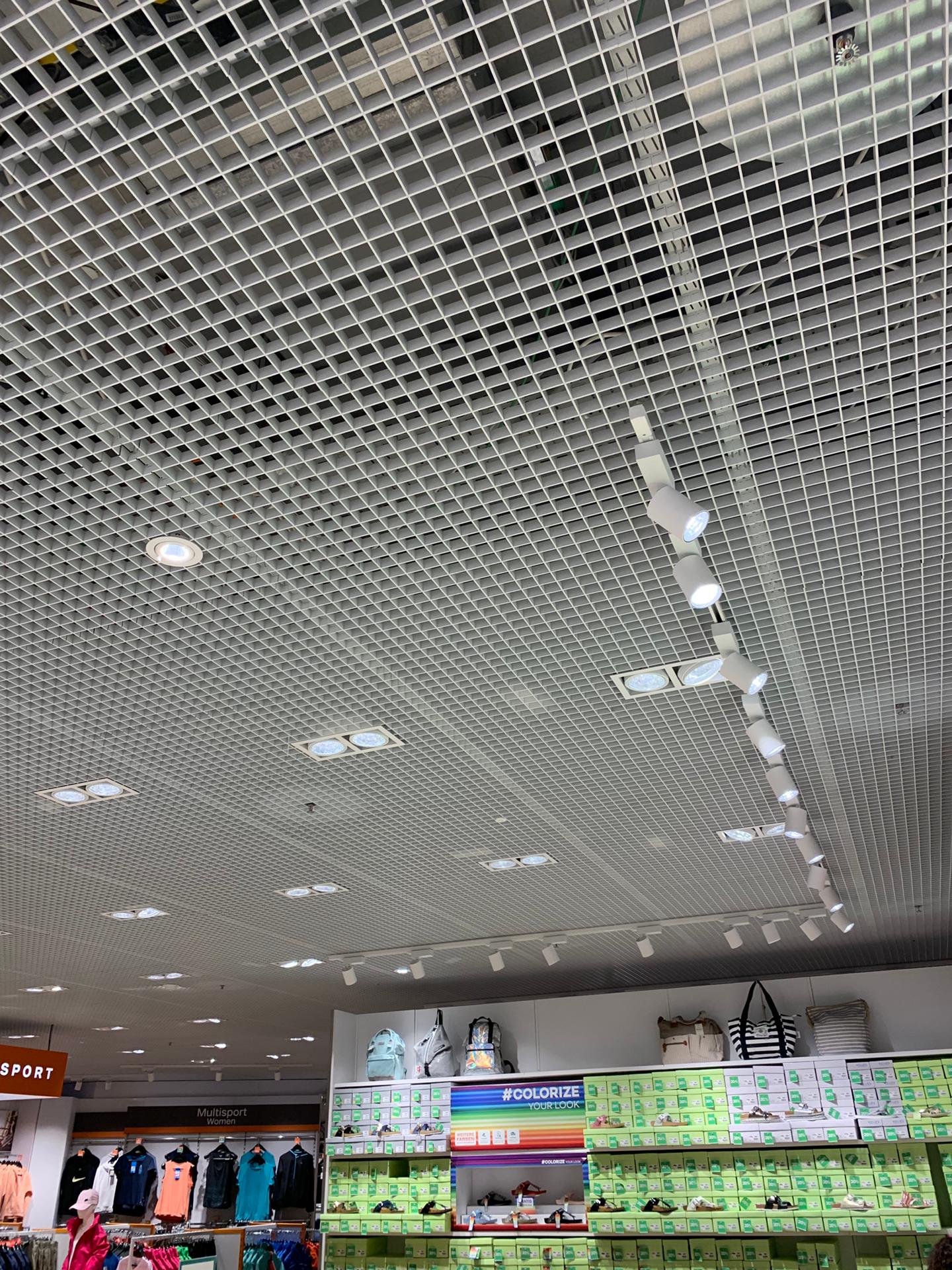

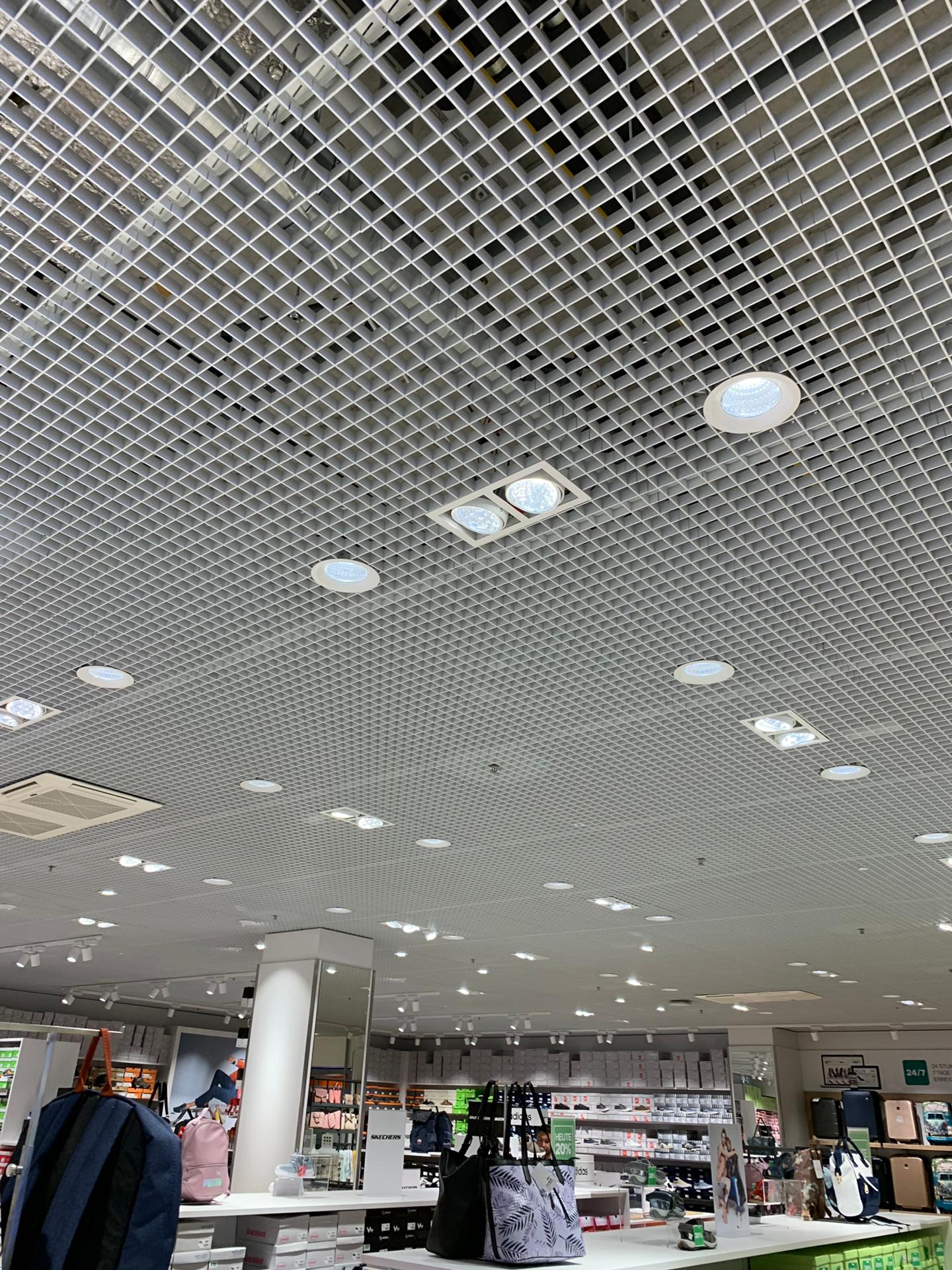

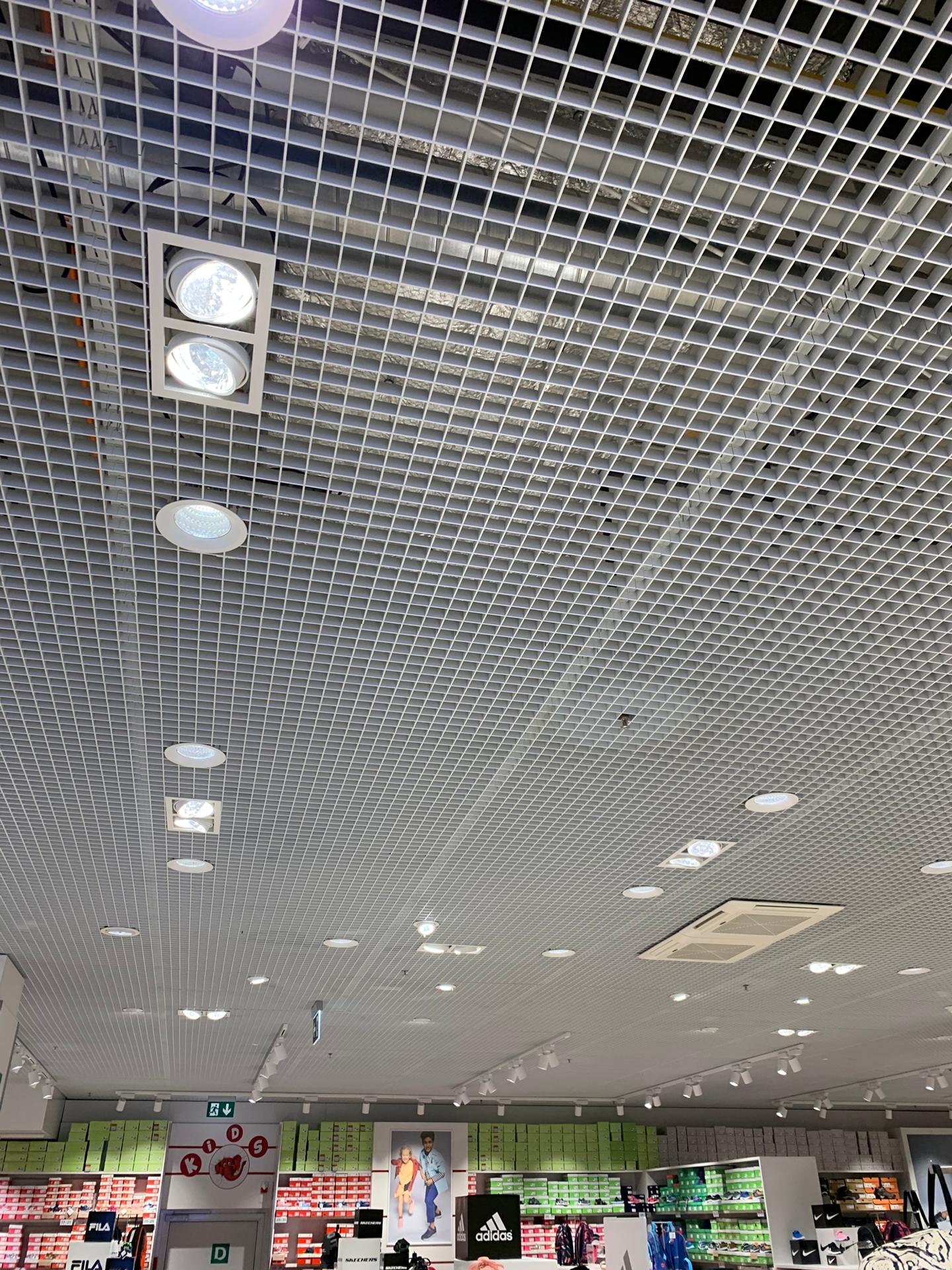

Dosenbach

Open-cell ceilingsystem (DeltaCell 4)
Cell-size 50 x 50 mm and 30 mm high
Suspension with standard trackless suspension system
Quantity is approx.. 650 m²
PDF: DeltaCell-4 cantilevering suspension system

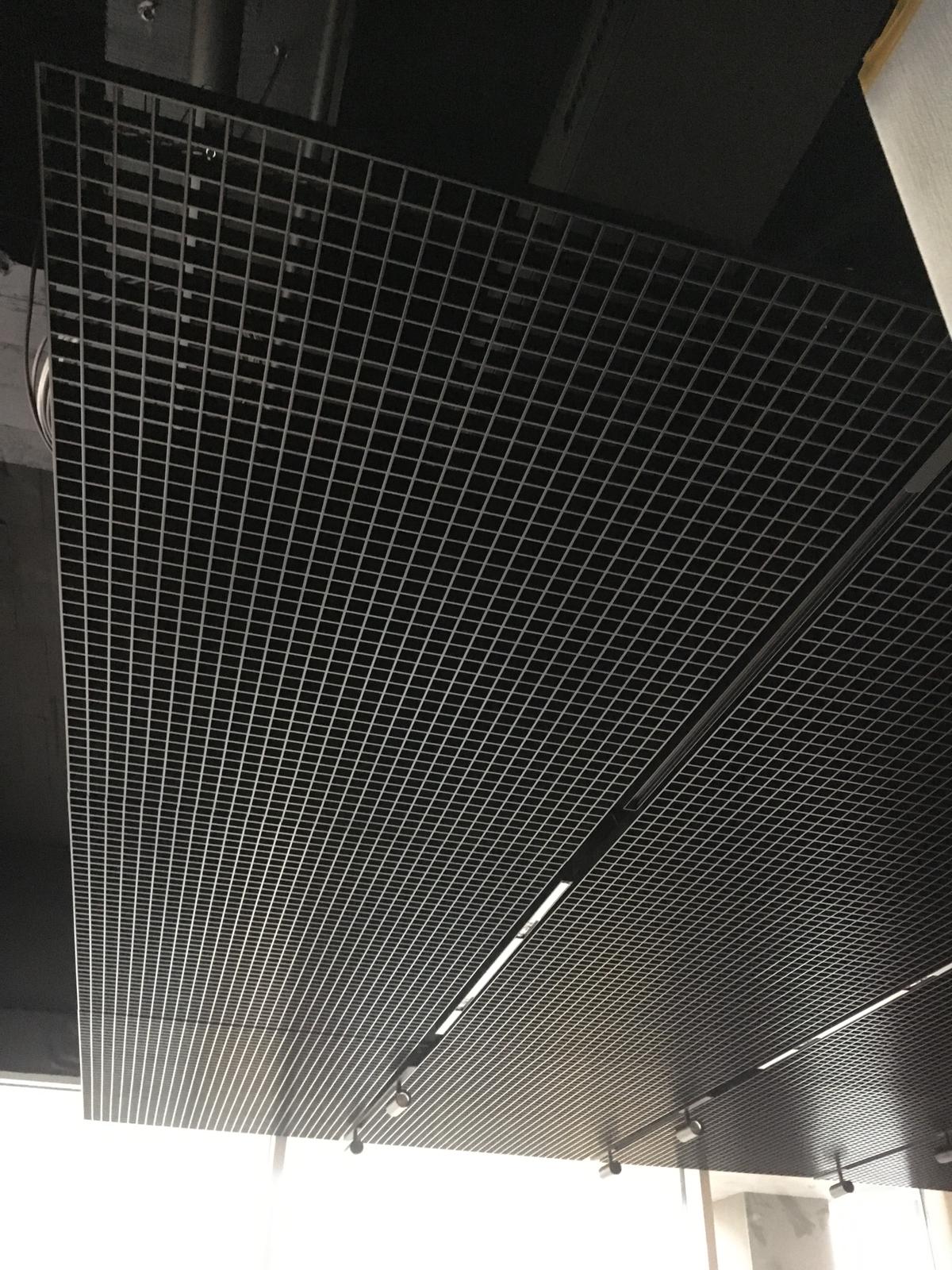

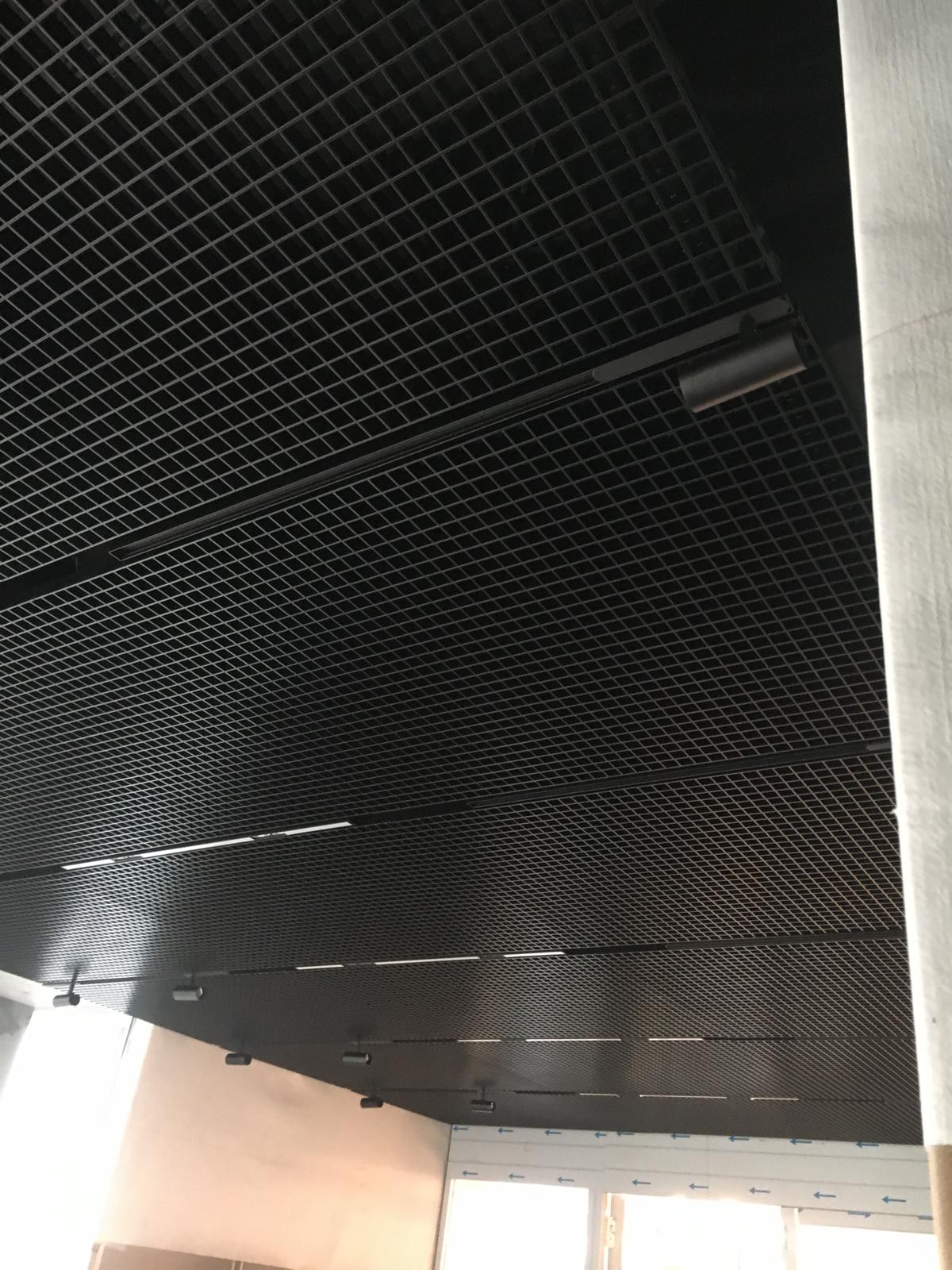

Swiss RE in Zürich - Zwitserland

Open-cell ceilingsystem (DeltaCell 4)
4 mm wide and 30 mm height
Trackless raft free-floating ceiling panels
PDF: Installation

DeltaLine

Material	Aluminium and steel
Cell-sizes	Variable from 30 up to 200mm
Blade-heights	Variable from 20mm ,30mm and 40mm

Blade-types

DeltaLine 3: 3mm wide and 20mm height
DeltaLine 4: 4mm wide and 30mm height
DeltaLine 10: 10mm wide and 40mm height

+ More details, specifications and references

Suspension variations	Standard system Tegular Lay-in Lay-on board
Suspension systems	Standard single suspension
Perimeter details	Data-Line perimeter details

Colours	Any RAL- or NCS colour
Product video's	Delta Line 3 Standard construction animation

Saturn

Material	Aluminium and steel
Cell-sizes	Variable from 30 up to 200mm
Blade-heights	Variable from 20 up to 50mm

Blade-types

Saturn 10: 10mm wide and 40mm height U-blade
Saturn 15: 15mm wide and 40mm height U-blade
Saturn 24: 24mm wide and 35mm height U-blade

+ More details, specifications and references

Systems	Lay-in (tegular or flat) Semi-trackless (Downward demountable) full-trackless (Hook-in)

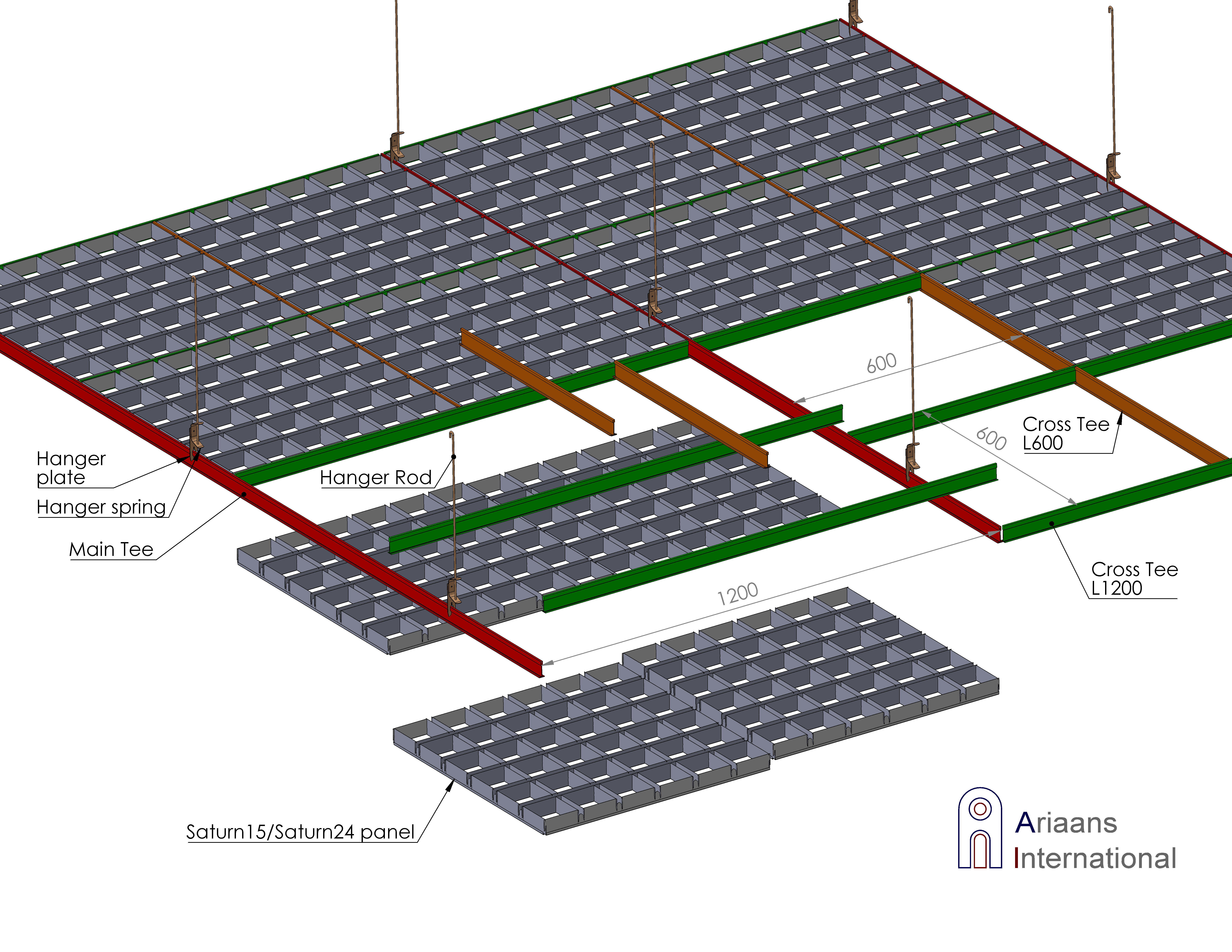

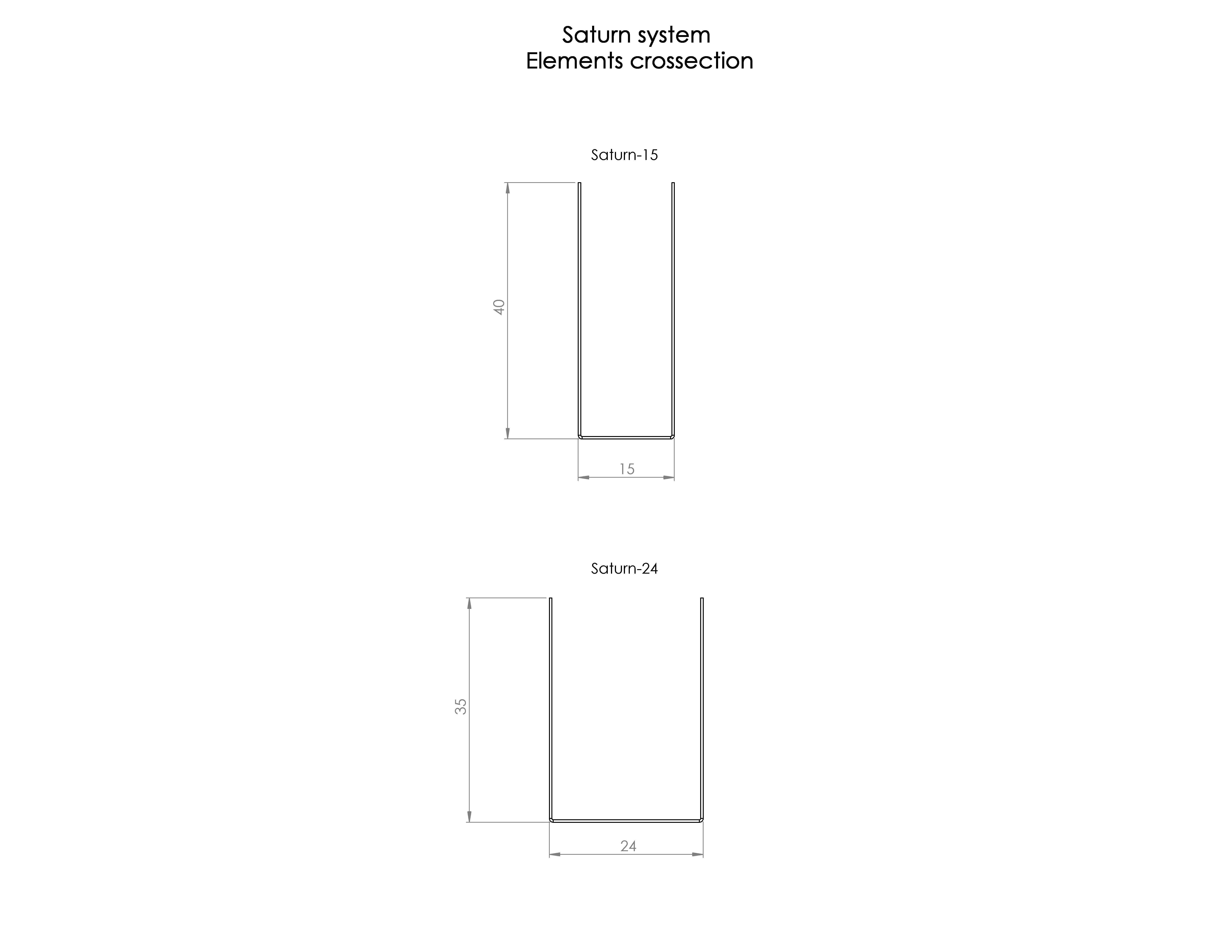

Product details	Saturn 10 ceiling construction Saturn 10 ceiling construction exploded Saturn 10 ceiling construction exploded detail Saturn 15 and 24 crossection Saturn 15 and 24 ceiling construction exploded

Colours	Any RAL- or NCS colour
Product video's	Full trackless Ceiling system - Saturn 10 Full trackless Ceiling system - Saturn 15 and 24 View all video's at our YouTube channel

SaturnLine

Material	Aluminium and steel
Cell-sizes	Variable from 20 up to 200mm
Blade-heights	Variable from 17,5 up to 50mm

Blade-types

SaturnLine 4mm wide and 15mm hight
SaturnLine 8,5mm wide and 17,5mm hight
SaturnLine 10mm wide and 20mm hight

+ More details, specifications and references

Systems	Lay-in (tegular or flat) Semi-trackless (Downward access) full-trackless (Hook-in)
Product details	Saturn 8,5 ceiling construction Saturn 8,5 ceiling construction Saturn 8,5 ceiling construction

Colours	Any RAL- or NCS colour

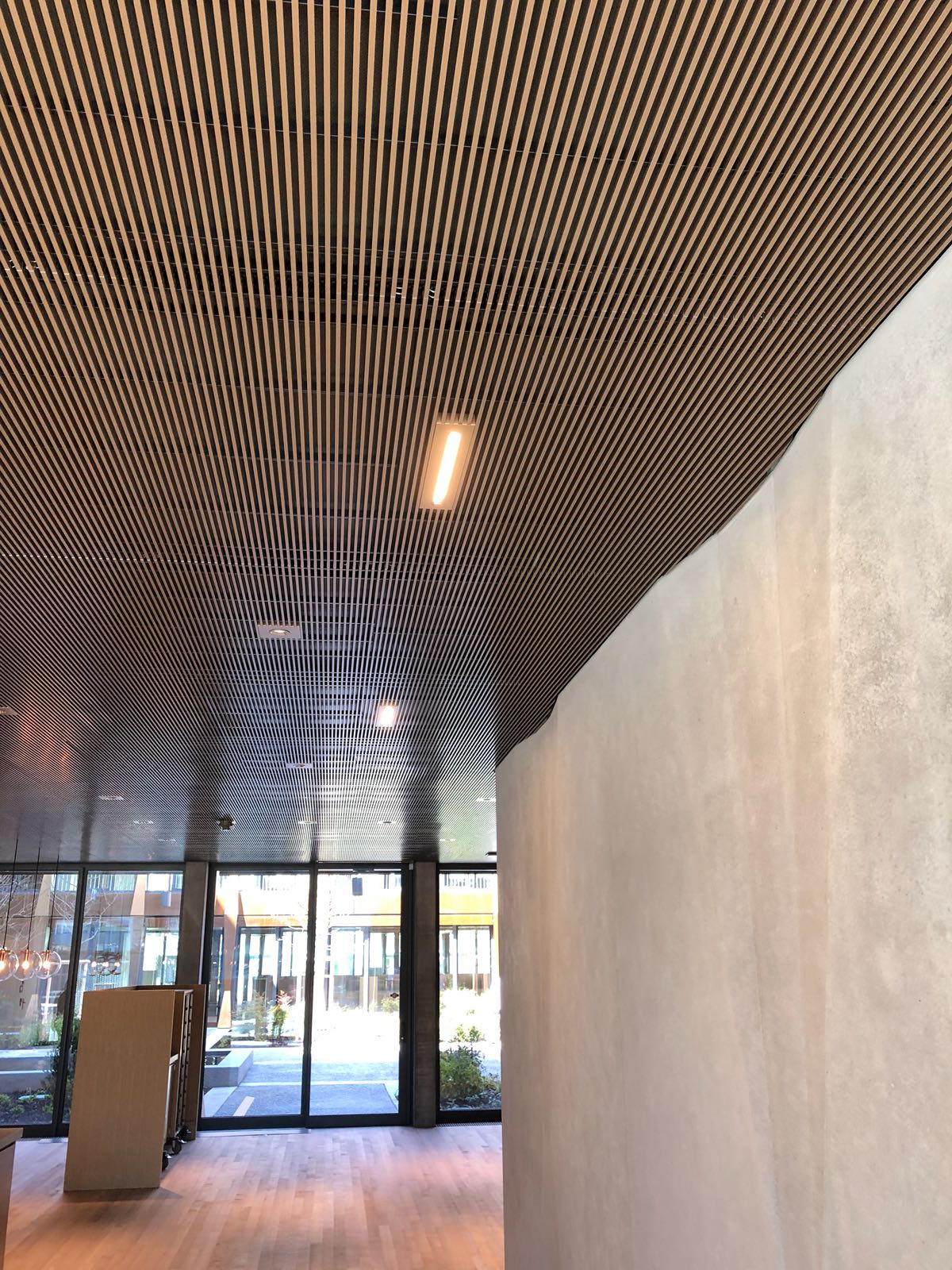

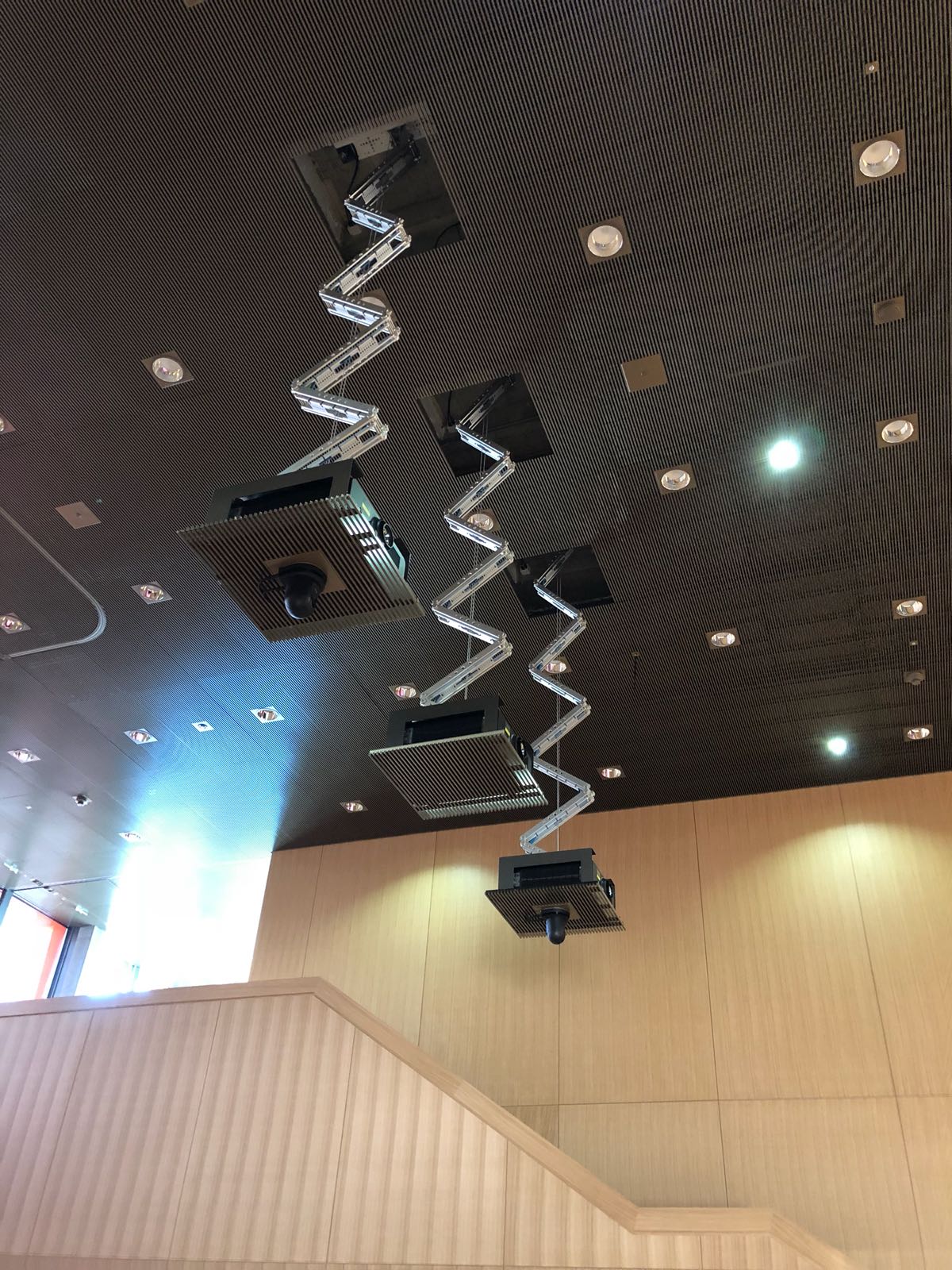

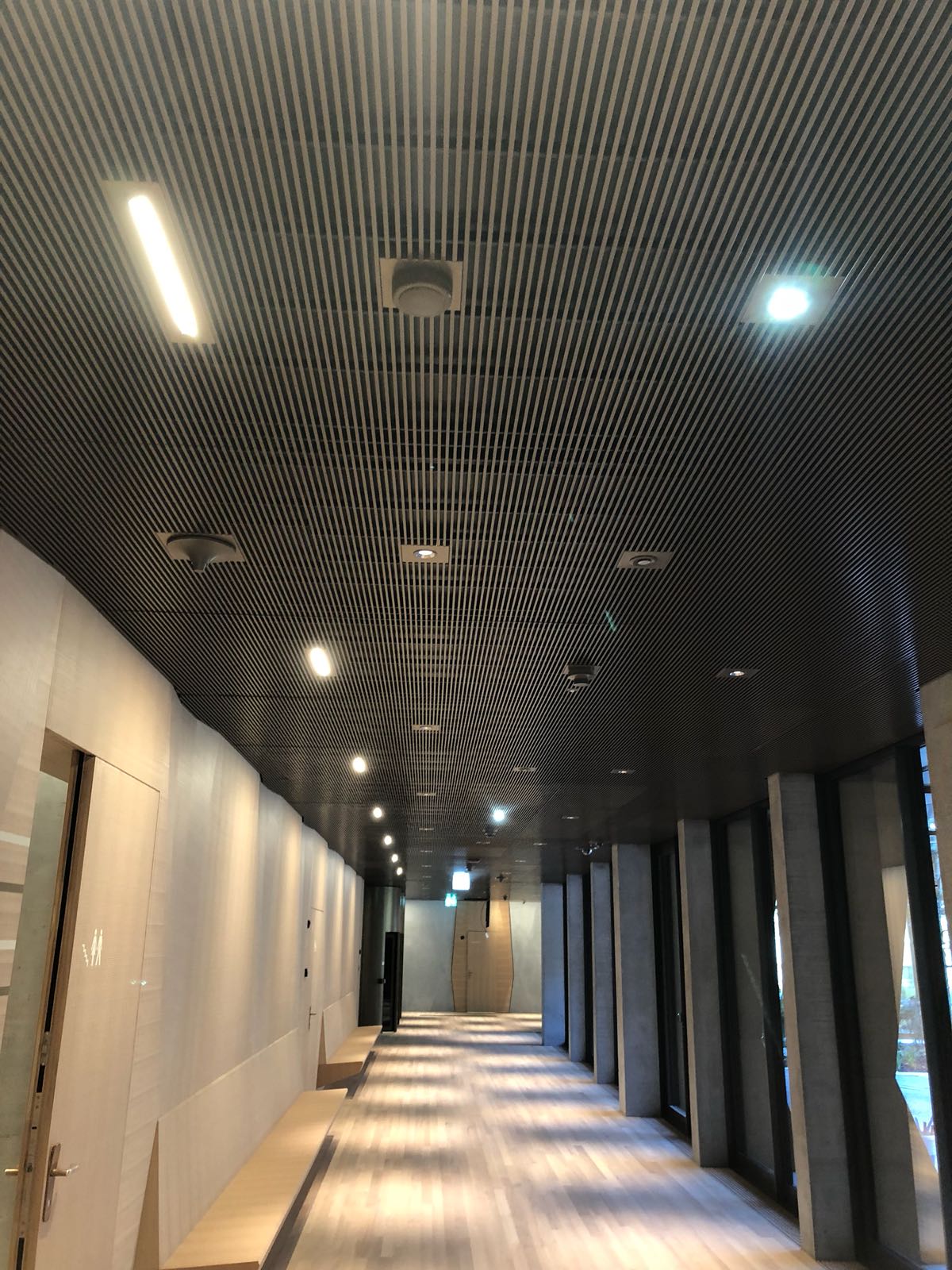

SaturnLine References

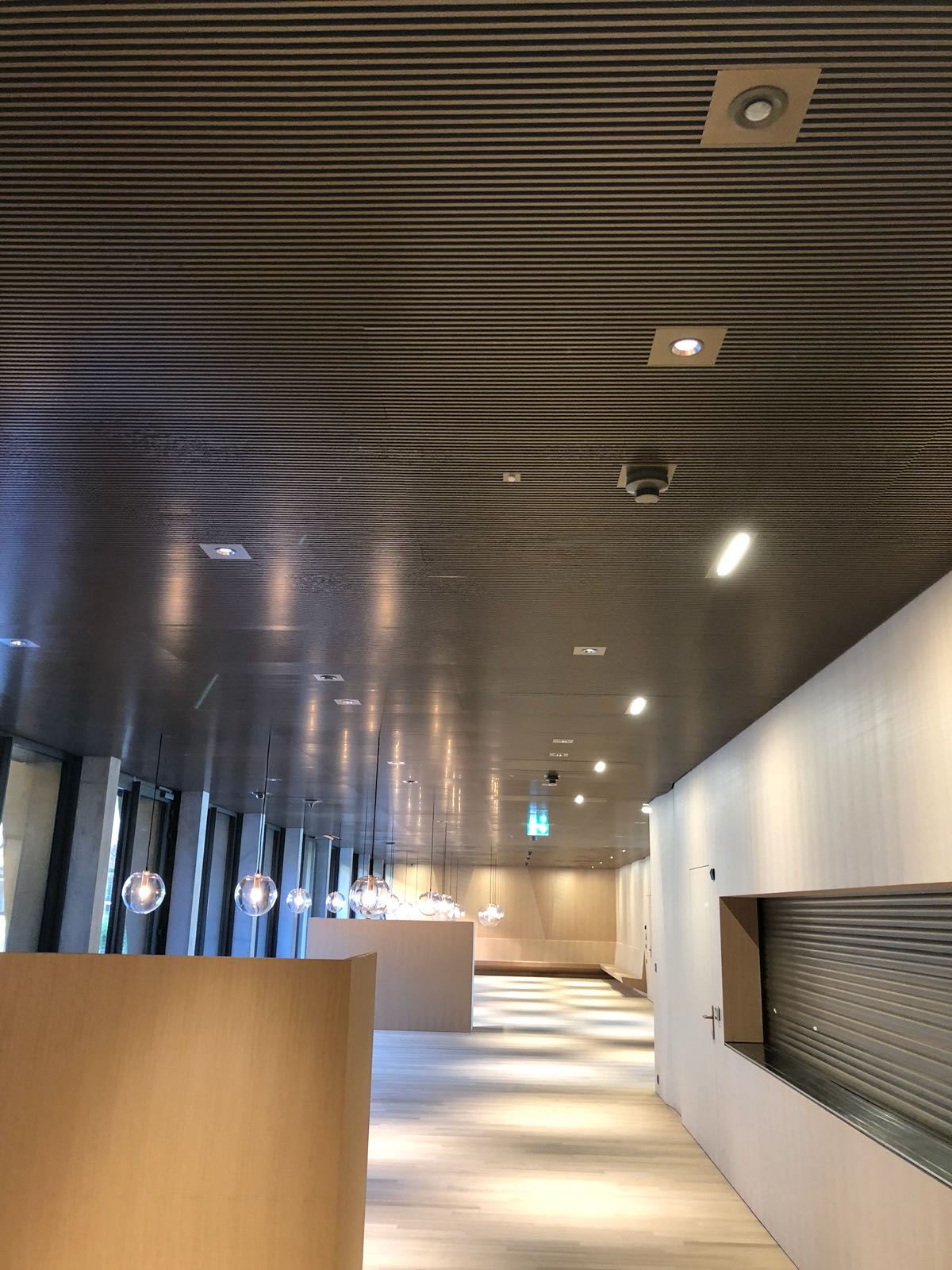

Domplein Utrecht SaturnLine 10 system
Swissgrid AG / Electrolux-Areal, Bürogebäude Aarau, Switzerland SaturnLine 8,5 system

Slimcell

A new and unique revolutionair aluminium louver-ceiling concept

Material	Aluminium
Cell-sizes	Variable from minimum 15 mm to maximum 100 mm
Blade-heights	Variable from minimum 15 mm to maximum 50 mm

Blade-types

Narrow blade width of only 1,80 mm. The intersection of the blades is unique and protected.

+ More details, specifications and references

Systems	Lay-in and tegular lay-in Semi-trackless (Downward demountable)
Construction	The unique method of forming a very thin material thickness gives a guarantee for a relative strong and stable ceiling louver.
Product details	SlimCell elements crossection SlimCell suspension systems SlimCell suspension system drawing SlimCell tegular system

Impression	The visual impression is seeing a "single blade" louver
Colours	Because of the unique design it is possible to supply any RAL- or NCS colours in relative small quantities at very competitive prices.
Perimeter details	SlimCell perimeter details

Satral

Material	Aluminium and steel
Cell-sizes	Variable from 25 up to 100 mm
Blade-heights	Variable from 50 up to 75 mm

Blade-types

Satral 5: 5mm wide and 70mm height U-blade

+ More details, specifications and references

Systems	Lay-in (tegular or flat) Semi-trackless (Downward demountable) full-trackless (Hook-in)
Product details	Satral Product Details

Colours

Any RAL- or NCS colour

Satral References

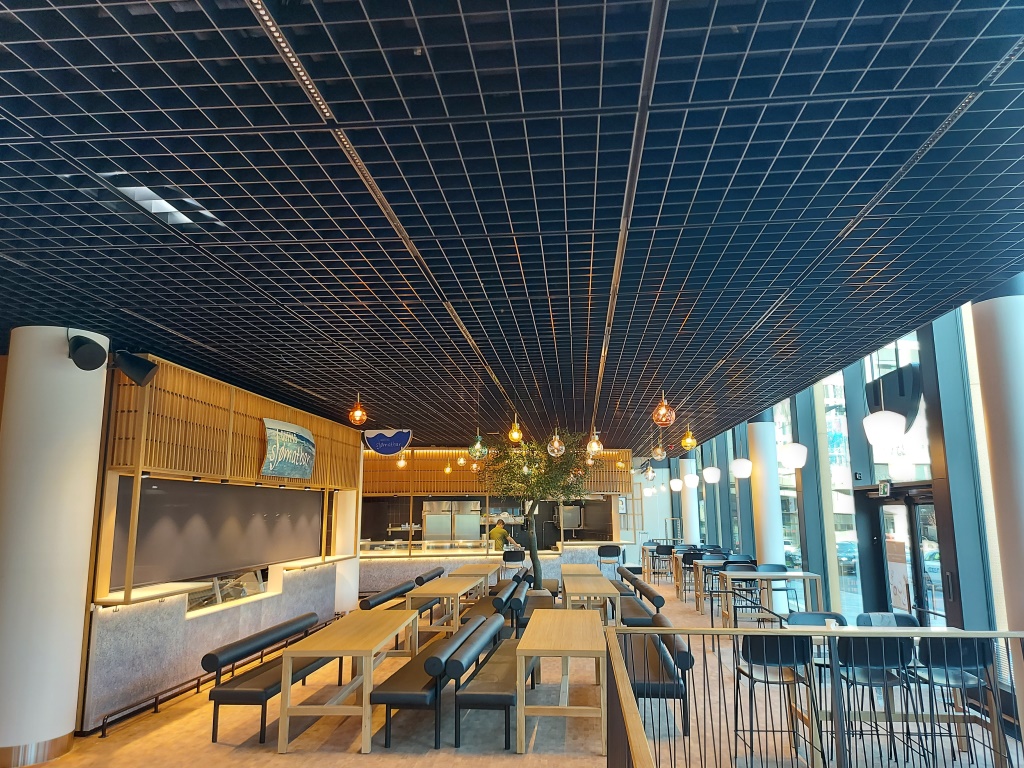

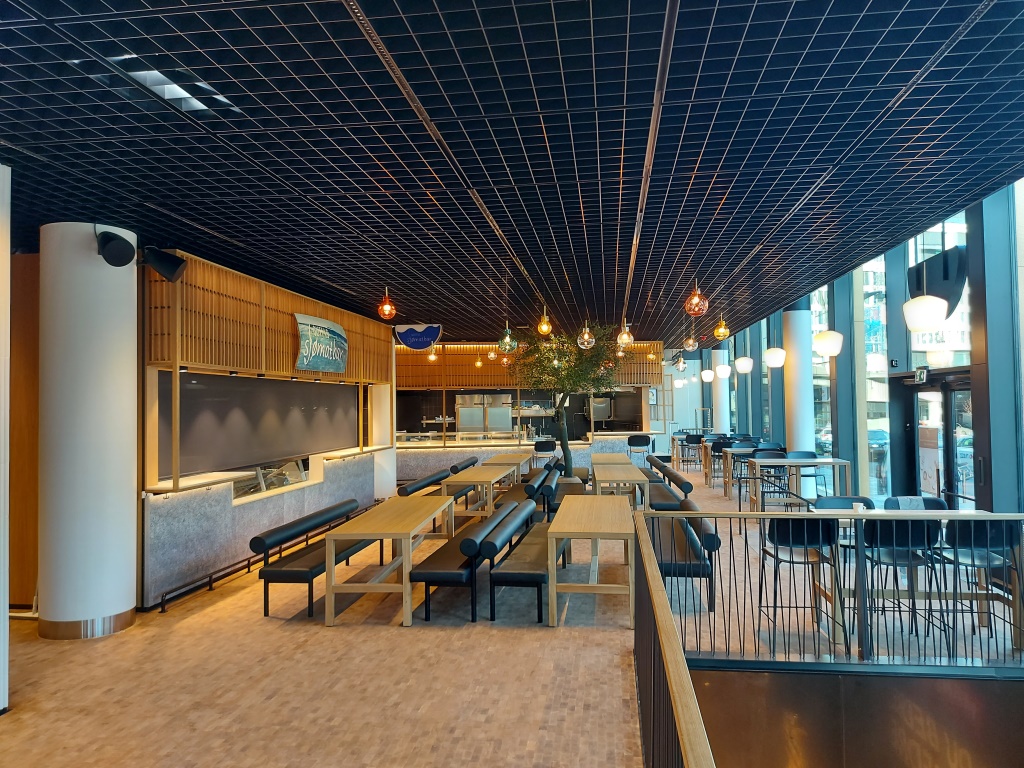

“R26 office building Kantine in Oslo” - Norway Design: Made by Ariaans-International D & E Product: Satral 5 lay-in for installation into a tee-35 mm Tee-grid Blade width: 5 mm Blade height: 70 mm Material: Pre-painted aluminium in the colour black RAL 9004 Panel size: Modular 1200 x 1200 mm Quantity: Approx. 3.000 m²
